📚 Systems Engineering Portfolio
Artur Mushegyan - Complete Assignment Collection
Written Essays

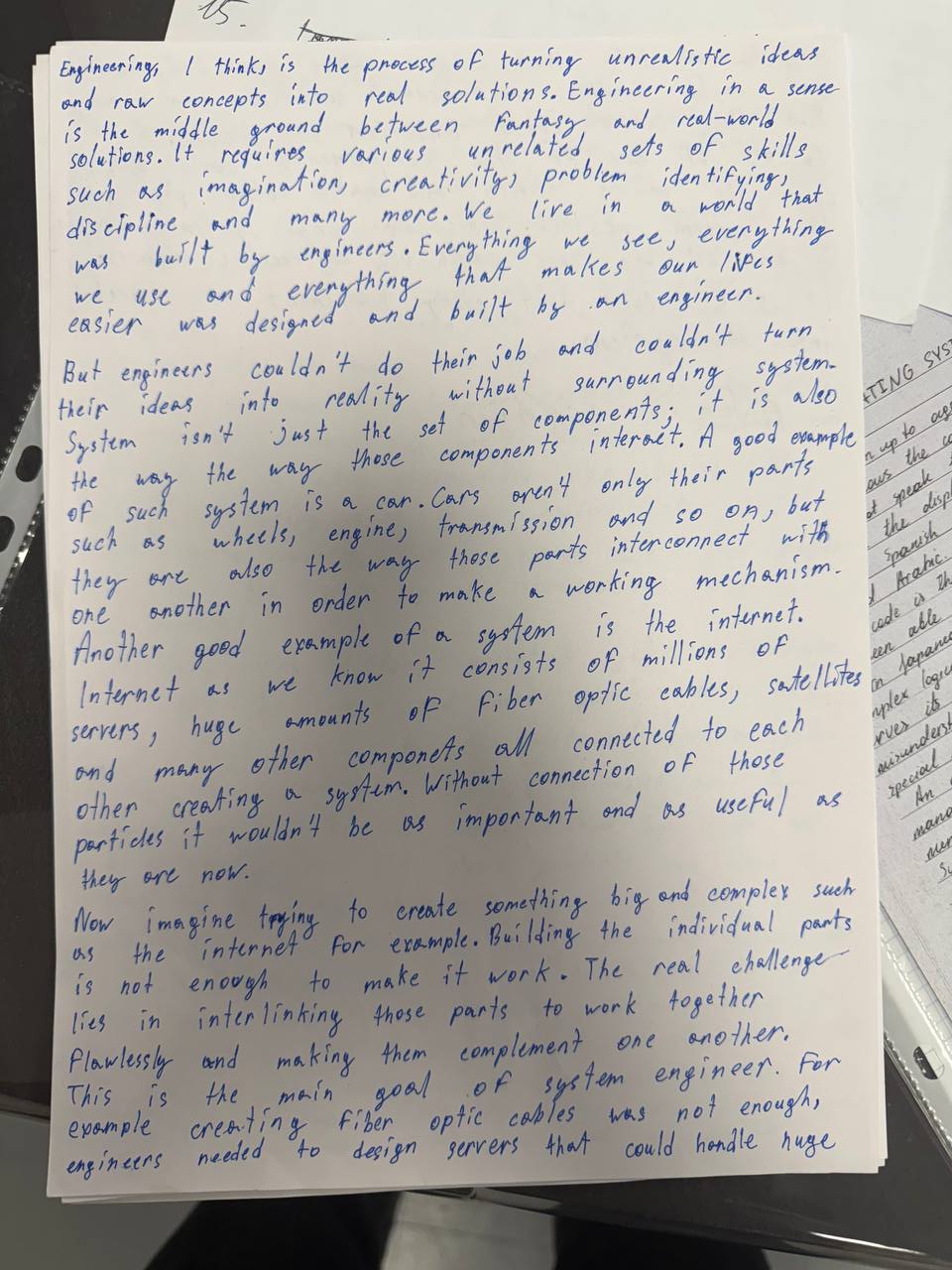

System Engineering Essay - Page 1
System Engineering Essay - Page 2
Operating Systems Essay

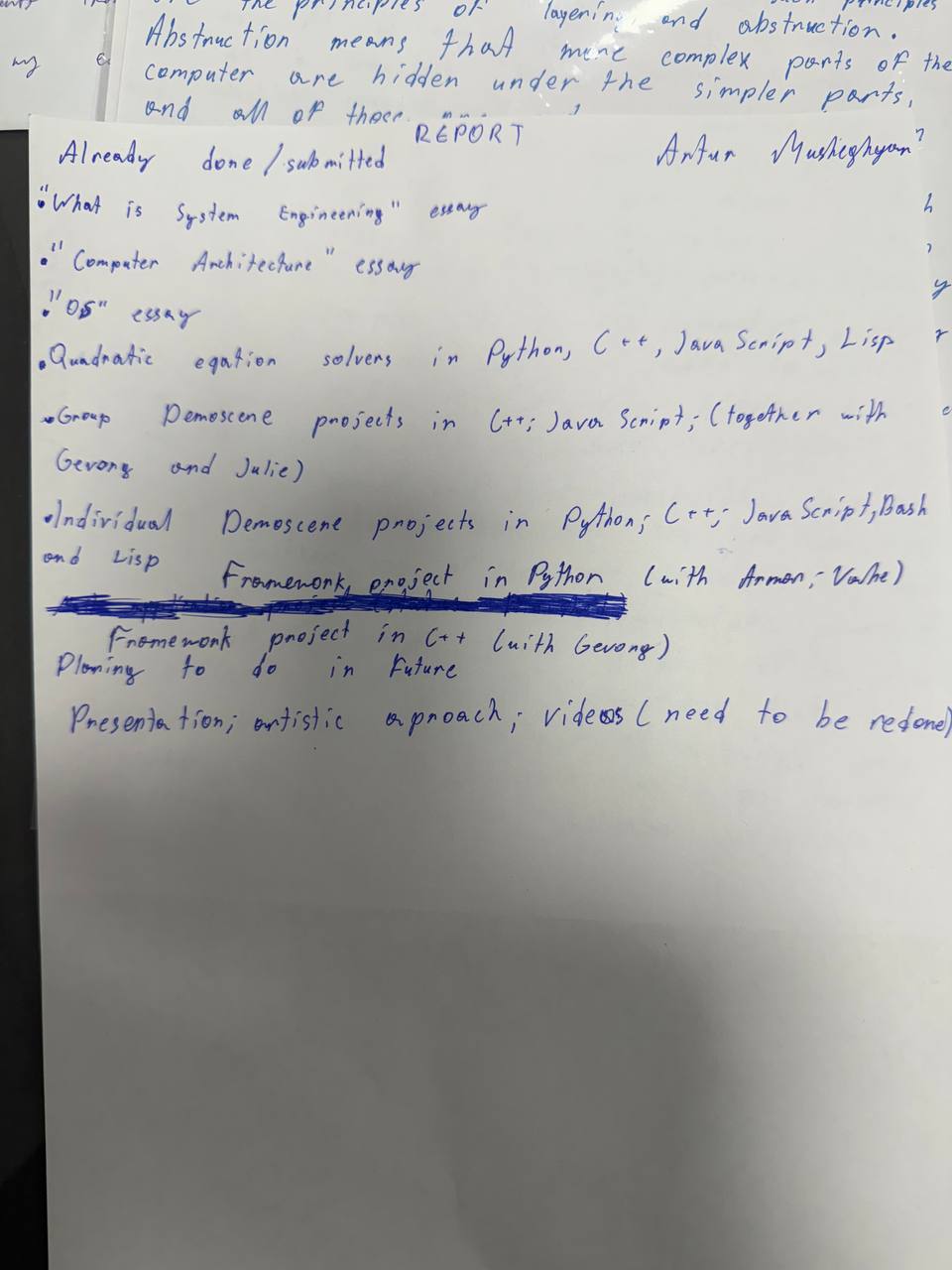

Report and Planning
Completed Essays:
- "What is System Engineering" - Definition and core concepts
- "Computer Architecture" - System design principles
- "OS" - Operating systems analysis
Quadratic Equation Solvers (4 Implementations)
Implementation in multiple programming languages solving ax² + bx + c = 0
Python Implementation
Python
import cmath # For handling complex numbers
def solve_quadratic(a, b, c):
if a == 0:
if b == 0:
return None if c != 0 else "infinite"
x = -c / b
return (x,) # Return a tuple with one solution
discriminant = cmath.sqrt(b**2 - 4*a*c)
x1 = (-b + discriminant) / (2 * a)
x2 = (-b - discriminant) / (2 * a)
return (x1, x2)
# Example usage:
a = float(input("Enter coefficient a: "))
b = float(input("Enter coefficient b: "))
c = float(input("Enter coefficient c: "))
solutions = solve_quadratic(a, b, c)
if solutions == "infinite":
print("Infinite solutions (all real numbers).")
elif solutions is None:
print("No solution exists.")
elif len(solutions) == 1:
print(f"Linear equation solution: x = {solutions[0]}")
else:
print(f"Solutions: x1 = {solutions[0]}, x2 = {solutions[1]}")
C++ Implementation
C++
#include <iostream>
#include <cmath>
using namespace std;
int main(int argc, char* argv[]) {
if (argc != 4) {
cout << "Usage: ./quadratic a b c" << endl;
return 1;
}
double a = atof(argv[1]);
double b = atof(argv[2]);
double c = atof(argv[3]);
if (a == 0) {
cout << "This is not a quadratic equation." << endl;
return 1;
}
double d = b*b - 4*a*c; // discriminant
cout << "Equation: " << a << "x² + " << b << "x + " << c << " = 0" << endl;
cout << "Discriminant (Δ) = " << d << endl;
if (d > 0) {
double x1 = (-b + sqrt(d)) / (2*a);
double x2 = (-b - sqrt(d)) / (2*a);
cout << "Two real roots:\n";
cout << "x1 = " << x1 << endl;
cout << "x2 = " << x2 << endl;
} else if (d == 0) {
double x = -b / (2*a);
cout << "One real root:\n";
cout << "x = " << x << endl;
} else {
double real = -b / (2*a);
double imag = sqrt(-d) / (2*a);
cout << "Two complex roots:\n";
cout << "x1 = " << real << " + " << imag << "i" << endl;
cout << "x2 = " << real << " - " << imag << "i" << endl;
}
return 0;
}
JavaScript Implementation
JavaScript (Node.js)
if (process.argv.length !== 5) {
console.log("Usage: node quadratic.js a b c");
process.exit(1);
}
let a = parseFloat(process.argv[2]);
let b = parseFloat(process.argv[3]);
let c = parseFloat(process.argv[4]);
if (a === 0) {
console.log("This is not a quadratic equation.");
process.exit(1);
}
let d = b * b - 4 * a * c; // discriminant
console.log(`Equation: ${a}x² + ${b}x + ${c} = 0`);
console.log(`Discriminant (Δ) = ${d}`);
if (d > 0) {
let x1 = (-b + Math.sqrt(d)) / (2 * a);
let x2 = (-b - Math.sqrt(d)) / (2 * a);
console.log("Two real roots:");
console.log("x1 =", x1);
console.log("x2 =", x2);
} else if (d === 0) {
let x = -b / (2 * a);
console.log("One real root:");
console.log("x =", x);
} else {
let real = -b / (2 * a);
let imag = Math.sqrt(-d) / (2 * a);
console.log("Two complex roots:");
console.log(`x1 = ${real} + ${imag}i`);
console.log(`x2 = ${real} - ${imag}i`);
}
Common Lisp Implementation
Common Lisp
(defun parse-float (s)
(coerce (read-from-string s) 'double-float))
(defun quadratic (a b c)
(if (= a 0)
(format t "This is not a quadratic equation.~%")
(let ((d (- (* b b) (* 4 a c))))
(format t "Equation: ~ax² + ~ax + ~a = 0~%" a b c)
(format t "Discriminant (Δ) = ~a~%" d)
(cond
((> d 0)
(let ((x1 (/ (+ (- b) (sqrt d)) (* 2 a)))
(x2 (/ (- (- b) (sqrt d)) (* 2 a))))
(format t "Two real roots:~%")
(format t "x1 = ~a~%" x1)
(format t "x2 = ~a~%" x2)))
((= d 0)
(let ((x (/ (- b) (* 2 a))))
(format t "One real root:~%")
(format t "x = ~a~%" x)))
(t
(let ((real (/ (- b) (* 2 a)))
(imag (/ (sqrt (- d)) (* 2 a))))
(format t "Two complex roots:~%")
(format t "x1 = ~a + ~ai~%" real imag)
(format t "x2 = ~a - ~ai~%" real imag)))))))
(let ((args (cdr *posix-argv*)))
(if (= (length args) 3)
(apply #'quadratic (mapcar #'parse-float args))
(format t "Usage: sbcl --script quadratic.lisp a b c~%")))
Demoscene Projects (5 Implementations)
Animated visual effects using mathematical functions
C++ Terminal Animation
C++
#include <iostream>
#include <cmath>
#include <chrono>
#include <thread>
using namespace std;
const int width = 80;
const int height = 24;
int main() {
double t = 0.0;
while (true) {
system("clear");
for (int y = 0; y < height; y++) {
for (int x = 0; x < width; x++) {
double nx = (x - width/2.0) / (width/2.0);
double ny = (y - height/2.0) / (height/2.0);
double value = sin(10*(nx*nx + ny*ny) - t) + cos(10*nx*ny - t);
char c = " .:-=+*#%@"[(int)((value+2)/4*9)];
cout << c;
}
cout << "\n";
}
t += 0.1;
this_thread::sleep_for(chrono::milliseconds(50));
}
return 0;
}
Python Pygame Bouncing Ball
Python (Pygame)
import pygame
import math
import sys
pygame.init()
WIDTH, HEIGHT = 800, 600
screen = pygame.display.set_mode((WIDTH, HEIGHT))
clock = pygame.time.Clock()
radius = 40
t = 0
while True:
for event in pygame.event.get():
if event.type == pygame.QUIT:
pygame.quit()
sys.exit()
t += 0.05
x = WIDTH // 2
y = int(HEIGHT / 2 + abs(200 * math.sin(t)))
screen.fill((0, 0, 0))
pygame.draw.circle(screen, (255, 255, 255), (x, y), radius)
pygame.display.flip()
clock.tick(60)
JavaScript Console Animation
JavaScript
let t = 0;
setInterval(() => {
console.clear();
let out = "";
for (let y = 0; y < 20; y++) {
let line = "";
for (let x = 0; x < 60; x++) {
let v = Math.sin(x/5 + t) + Math.cos(y/3 - t);
line += v > 0 ? "#" : ".";
}
out += line + "\n";
}
console.log(out);
t += 0.2;
}, 100);
Bash Shell Demoscene
Bash
#!/bin/bash
clear
trap "tput cnorm; stty echo; exit" SIGINT SIGTERM
tput civis
stty -echo
colors=(31 32 33 34 35 36 91 92 93 94 95 96)
for frame in {0..500}; do
printf "\033[H"
rows=$(tput lines)
cols=$(tput cols)
center_x=$((cols / 2))
center_y=$((rows / 2))
for ((y=2; y/dev/null | cut -d. -f2 | head -c1)
pattern2=$(echo "scale=2; c(($nx*0.08 - $ny*0.07 + $t*0.02))" | bc -l 2>/dev/null | cut -d. -f2 | head -c1)
pattern3=$(echo "scale=2; ($nx*$nx + $ny*$ny)/100 + $t*0.1" | bc -l 2>/dev/null | cut -d. -f2 | head -c1)
combined=$(( (pattern1 + pattern2 + pattern3) % 2 ))
if [ $combined -eq 0 ]; then
color_idx=$(( (x + y + frame) % ${#colors[@]} ))
char="█"
else
char=" "
fi
line="${line}${char}"
done
printf "\033[${y};1H${line}"
done
title="BASH DEMOSCENE - FRAME $frame"
title_x=$(( (cols - ${#title}) / 2 ))
printf "\033[1;${title_x}H\033[1;37m${title}\033[0m"
eq1="sin(x/10 + y/20 + t) + cos(x/8 - y/7 + t*2) + (x²+y²)/100"
eq_x=$(( (cols - ${#eq1}) / 2 ))
printf "\033[$((rows-3));${eq_x}H\033[33m${eq1}\033[0m"
bar_width=$((cols - 20))
progress=$(( (frame * bar_width) / 500 ))
bar="["
for ((i=0; i
CRT Cartesian-Ray Tube (Interactive HTML)
HTML + JavaScript
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>CRT Cartesian-Ray Tube</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Courier New', monospace;
}
body {
background: #000;
color: #0f0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
min-height: 100vh;
padding: 20px;
}
.crt-screen {
background: #111;
border: 2px solid #333;
border-radius: 5px;
padding: 20px;
box-shadow: 0 0 20px rgba(0, 255, 0, 0.3);
}
.visualization {
height: 300px;
background: #000;
border: 1px solid #0a0;
}
@keyframes scanline {
0% { top: 0; }
100% { top: 100%; }
}
</style>
</head>
<body>
<div class="container">
<div class="header">
<h1>CRT CARTESIAN-RAY TUBE</h1>
</div>
<div class="crt-screen">
<div class="visualization">
<canvas id="canvas"></canvas>
</div>
<div class="controls">
<input type="number" id="frequency" min="1" max="100" value="30">
<input type="number" id="amplitude" min="1" max="50" value="20">
<input type="number" id="phase" min="0" max="360" value="0">
<button id="calculateBtn">CALCULATE WAVE PATTERN</button>
</div>
</div>
</div>
<script>
const canvas = document.getElementById('canvas');
const ctx = canvas.getContext('2d');
function drawTube(frequency, amplitude, phase) {
ctx.clearRect(0, 0, canvas.width, canvas.height);
// Draw grid and wave visualization
ctx.strokeStyle = '#0f0';
ctx.lineWidth = 2;
ctx.beginPath();
const centerY = canvas.height / 2;
const time = Date.now() / 1000;
for (let x = 0; x < canvas.width; x++) {
const y = centerY + amplitude * Math.sin(
(x / canvas.width) * frequency * Math.PI * 2 +
(time * 0.5) +
(phase * Math.PI / 180)
);
if (x === 0) ctx.moveTo(x, y);
else ctx.lineTo(x, y);
}
ctx.stroke();
}
function animate() {
drawTube(
parseFloat(document.getElementById('frequency').value),
parseFloat(document.getElementById('amplitude').value),
parseFloat(document.getElementById('phase').value)
);
requestAnimationFrame(animate);
}
canvas.width = 600;
canvas.height = 300;
animate();
</script>
</body>
</html>
Conway's Game of Life (4 Implementations)
100x100 toroidal grid implementation with exact rules
Python Implementation (Pygame)
Python
import pygame
import random
import sys
GRID_W = 200
GRID_H = 200
CELL_SIZE = 6
WINDOW_W = GRID_W * CELL_SIZE
WINDOW_H = GRID_H * CELL_SIZE
FPS = 10
ALIVE = 1
DEAD = 0
COLOR_ALIVE = (255, 255, 255)
COLOR_DEAD = (0, 0, 255)
GRID_COLOR = (200, 200, 200)
def create_grid(randomize=False, prob_alive=0.15):
if randomize:
return [[ALIVE if random.random() < prob_alive else DEAD
for _ in range(GRID_W)] for _ in range(GRID_H)]
else:
return [[DEAD for _ in range(GRID_W)] for _ in range(GRID_H)]
def count_alive_neighbors(grid, x, y):
total = 0
for dy in (-1, 0, 1):
for dx in (-1, 0, 1):
if dx == 0 and dy == 0:
continue
nx = (x + dx) % GRID_W
ny = (y + dy) % GRID_H
total += grid[ny][nx]
return total
def step(grid):
new_grid = [[DEAD for _ in range(GRID_W)] for _ in range(GRID_H)]
for y in range(GRID_H):
for x in range(GRID_W):
alive = grid[y][x] == ALIVE
neighbors = count_alive_neighbors(grid, x, y)
if alive:
if neighbors == 2 or neighbors == 3:
new_grid[y][x] = ALIVE
else:
new_grid[y][x] = DEAD
else:
if neighbors == 3:
new_grid[y][x] = ALIVE
else:
new_grid[y][x] = DEAD
return new_grid
# Main game loop with controls...
# Space: pause/resume, R: randomize, C: clear, S: single-step
JavaScript Implementation (Canvas)
JavaScript
const GRID_W = 100;
const GRID_H = 100;
const CELL_SIZE = 6;
const ALIVE = 1;
const DEAD = 0;
let grid = [];
let paused = false;
let speed = 10;
const canvas = document.createElement('canvas');
canvas.width = GRID_W * CELL_SIZE;
canvas.height = GRID_H * CELL_SIZE;
document.body.appendChild(canvas);
const ctx = canvas.getContext('2d');
function createGrid(randomize = false, probAlive = 0.15) {
const g = [];
for (let y = 0; y < GRID_H; y++) {
g[y] = [];
for (let x = 0; x < GRID_W; x++) {
g[y][x] = randomize && Math.random() < probAlive ? ALIVE : DEAD;
}
}
return g;
}
function countAliveNeighbors(grid, x, y) {
let total = 0;
for (let dy = -1; dy <= 1; dy++) {
for (let dx = -1; dx <= 1; dx++) {
if (dx === 0 && dy === 0) continue;
const nx = (x + dx + GRID_W) % GRID_W;
const ny = (y + dy + GRID_H) % GRID_H;
total += grid[ny][nx];
}
}
return total;
}
function step(grid) {
const newGrid = [];
for (let y = 0; y < GRID_H; y++) {
newGrid[y] = [];
for (let x = 0; x < GRID_W; x++) {
const alive = grid[y][x] === ALIVE;
const neighbors = countAliveNeighbors(grid, x, y);
if (alive) {
newGrid[y][x] = (neighbors === 2 || neighbors === 3) ? ALIVE : DEAD;
} else {
newGrid[y][x] = (neighbors === 3) ? ALIVE : DEAD;
}
}
}
return newGrid;
}
// Controls: Space (pause), R (randomize), C (clear), Arrow keys (speed)
HTML5 Canvas Version
HTML + JavaScript
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Game of Life</title>
<style>
body {
background: #222;
display: flex;
justify-content: center;
align-items: center;
height: 100vh;
margin: 0;
}
canvas {
background: white;
box-shadow: 0 0 20px rgba(0,0,0,0.5);
}
</style>
</head>
<body>
<canvas id="game"></canvas>
<script>
const CELL_SIZE = 10;
const GRID_W = 200;
const GRID_H = 200;
const canvas = document.getElementById("game");
canvas.width = GRID_W * CELL_SIZE;
canvas.height = GRID_H * CELL_SIZE;
const ctx = canvas.getContext("2d");
let grid = Array.from({ length: GRID_H }, () => Array(GRID_W).fill(0));
let next = Array.from({ length: GRID_H }, () => Array(GRID_W).fill(0));
// Random initialization
for (let y = 0; y < GRID_H; y++)
for (let x = 0; x < GRID_W; x++)
grid[y][x] = Math.random() < 0.25 ? 1 : 0;
function loop() {
step();
draw();
requestAnimationFrame(loop);
}
loop();
</script>
</body>
</html>
Industry Matrix: Operating Systems
Comparison of Windows, macOS, and Linux across strategic and operational dimensions
| Dimension | Windows (Microsoft) | macOS (Apple) | Linux (Various Distributions) |
|---|---|---|---|
| Market Share (Desktop, 2025 est.) | ~72–75% | ~15–17% | ~2–3% (desktop), >70% (servers/cloud) |
| Primary Market Segment | Business, enterprise, gaming, personal computing | Creative professionals, premium consumers | Developers, enterprise servers, embedded systems, cloud |
| Business Model | Proprietary licensing; revenue via OEM deals and subscriptions (Microsoft 365, Azure) | Proprietary; bundled with Apple hardware; revenue primarily from hardware and services | Open-source; revenue via support (Red Hat, Canonical) and cloud integration |
| Pricing Structure | Pre-installed on most PCs (paid OEM); enterprise licensing models | Free with Apple hardware (cost embedded in device pricing) | Free/open-source; optional paid enterprise support |
| Hardware Compatibility | Very broad — supported by most PC manufacturers | Limited — Apple hardware only | Extremely broad — runs on wide range of devices and architectures |
| User Interface (UI/UX) | Familiar, flexible with moderate customization | Polished, consistent; less system-level customization | Varies by distribution (GNOME, KDE); highly customizable |
| Software Availability | Largest commercial ecosystem (productivity, enterprise, gaming) | Strong in creative/professional apps (Final Cut, Logic) | Extensive open-source tools; fewer proprietary commercial apps |
| Performance & Optimization | Varies with hardware; tuned for wide compatibility | Highly optimized for Apple silicon (M-series) | High efficiency possible; depends on distro and tuning |
| Security | Significant improvements but large attack surface due to popularity | Strong platform security and sandboxing; lower malware exposure | Transparent, rapid patching in communities; security depends on configuration |
| Gaming Support | Excellent — DirectX, large game library, Game Pass | Limited native support; Metal-based titles and Apple Arcade | Improving via Proton and Vulkan; adoption growing |
| Enterprise Adoption | Widespread enterprise standard | Moderate — popular in creative teams | Dominant in servers, DevOps, cloud-native infrastructure |
| Cloud & Server Market | Azure is major cloud player; Windows Server used in many enterprises | Minimal server footprint | Dominant in cloud and server environments (>70% web servers) |
| Innovation Focus | Productivity, AI (Copilot), enterprise integration | UX, hardware-software integration, ARM optimization | Open innovation, modular and community-driven development |
QUCS Circuit Simulation
Electronic circuit design and simulation using QUCS (Quite Universal Circuit Simulator)
NOT Gate Circuit with Transient Simulation
Circuit Description:
This circuit demonstrates a NOT gate (inverter) driven by a pulse voltage source. The simulation shows the transient behavior of the circuit with a 5V DC supply and a pulse input signal.
Videos
Watch demonstrations of the different projects directly on this page.
